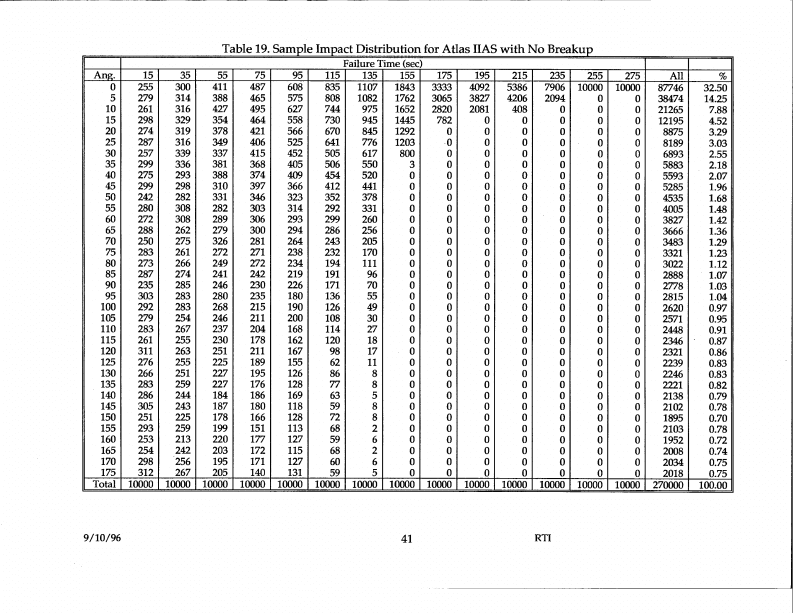

Table 19. Sample Impact Distribution for Atlas HAS with No Breakup Failure Time (sec) Ane. 15 35 55 75 95 115 135 155 175 195 215 235 255 275 All % 0 255 300 411 487 608 835 1107 1843 3333 4092 5386 7906 10000 10000 87746 32.50 5 279 314 388 465 575 808 1082 1762 3065 3827 4206 2094 0 0 38474 14.25 10 261 316 427 495 627 744 975 1652 2820 2081 408 0 0 0 21265 7.88 15 298 329 354 464 558 730 945 1445 782 0 0 0 0 0 12195 4.52 20 274 319 378 421 566 670 845 1292 0 0 0 0 0 0 8875 3.29 25 287 316 349 406 525 641 776 1203 -0 0 0 0 0 0 8189 3.03 30 257 339 337 415 452 505 617 800 0 0 0 0 0 0 6893 2.55 35 299 336 381 368 405 506 550 3 0 0 0 0 0 0 5883 2.18 40 275 293 388 374 409 454 520 0 0 0 0 0 0 0 5593 2.07 45 299 298 310 397 366 412 441 0 0 0 0 0 0 0 5285 1.96 50 242 282 331 346 323 352 378 0 0 0 0 0 0 0 4535 1.68 55 280 308 282 303 314 292 331 0 0 0 0 0 0 0 4005 1.48 60 272 308 289 306 293 299 260 0 0 0 0 0 0 0 3827 1.42 65 288 262 279 300 294 286 256 0 0 0 0 0 0 0 3666 1.36 70 250 275 326 281 264 243 205 0 0 0 0 0 0 0 3483 1.29 75 283 261 272 271 238 232 170 0 0 0 0 0 0 0 3321 1.23 80 273 266 249 272 234 194 111 0 0 0 0 0 0 0 3022 1.12 85 287 274 241 242 219 191 96 0 0 0 0 0 0 0 2888 1.07 90 235 285 246 230 226 171 70 0 0 0 0 0 0 0 2778 1.03 95 303 283 280 235 180 136 55 0 0 0 0 0 0 0 2815 1.04 100 292 283 268 215 190 126 49 0 0 0 0 0 0 0 2620 0.97 105 279 254 246 211 200 108 30 0 0 0 0 0 0 0 2571 0.95 110 283 267 237 204 168 114 27 0 0 0 0 0 0 0 2448 0.91 115 261 255 230 178 162 120 18 0 0 0 0 0 0 0 2346 0.87 120 311 263 251 211 167 98 17 0 0 0 0 0 0 0 2321 0.86 125 276 255 225 189 155 62 11 0 0 0 0 0 0 0 2239 0.83 130 266 251 227 195 126 86 8 0 0 0 0 0 0 0 2246 0.83 135 283 259 227 176 128 77 8 0 0 0 0 0 0 0 2221 0.82 140 286 244 184 186 169 63 5 0 0 0 0 0 0 0 2138 0.79 145 305 243 187 180 118 59 8 0 0 0 0 0 0 0 2102 0.78 150 251 225 178 166 128 72 8 0 0 0 0 0 0 0 1895 0.70 155 293 259 199 151 113 68 2 0 0 0 0 0 0 0 2103 0.78 160 253 213 220 177 127 59 6 0 0 0 0 0 0 0 1952 0.72 165 254 242 203 172 115 68 2 0 0 0 0 0 0 0 2008 0.74 170 298 256 195 171 127 60 6 0 0 0 0 0 0 0 2034 0.75 175 312 267 205 140 131 59 5 0 0 0 0 0 0 0 2018 0.75 Total 10000 10000 10000 10000 10000 10000 10000 10000 10000 10000 10000 10000 10000 10000 270000 100.00 9/10/96 41 RTI
Detected images on this page (1)
Vision Description (EN)

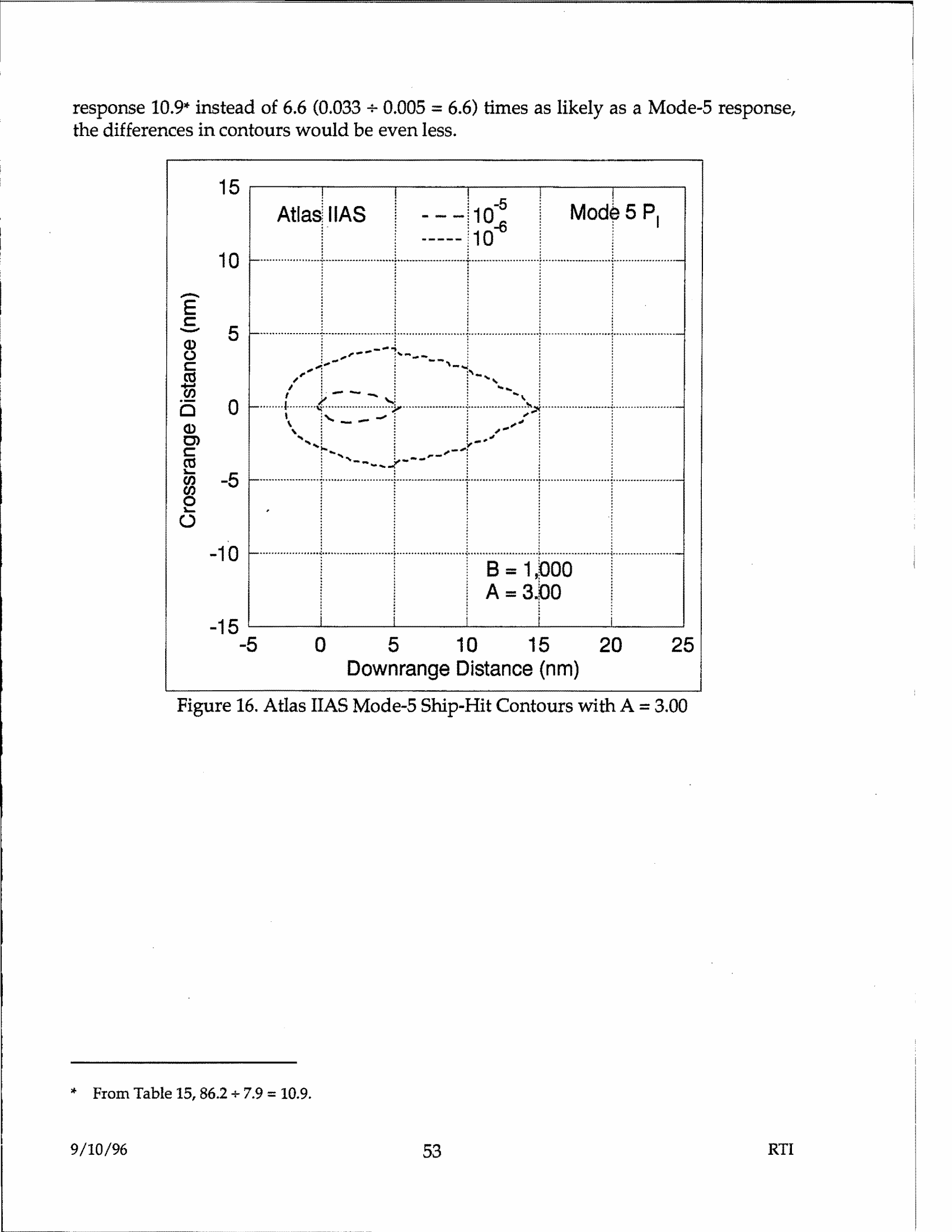

Page 53 displays Figure 16, a technical diagram showing Atlas HAS Mode-5 Slop-Hit contours plotted on a Cartesian coordinate system. The diagram shows two elliptical contours labeled "Atlas HAS" and "Mode 5 P₁" with parameters R = 1,000 and A = 3.00. The x-axis represents Downrange Distance (nm) ranging from 0 to 25, while the y-axis represents Crossrange Distance (nm) ranging from -15 to 15. Introductory text above the diagram discusses response comparisons. Page dated 9/10/96 and credited to RTI.
Descrição Vision (PT-BR)
A página 53 exibe a Figura 16, um diagrama técnico mostrando contornos do Atlas HAS Mode-5 Slop-Hit plotados em um sistema de coordenadas cartesianas. O diagrama mostra dois contornos elípticos rotulados "Atlas HAS" e "Mode 5 P₁" com parâmetros R = 1,000 e A = 3.00. O eixo x representa a Distância de Alcance (nm) variando de 0 a 25, enquanto o eixo y representa a Distância Transversal (nm) variando de -15 a 15. Um texto introdutório acima do diagrama discute comparações de respostas. Página datada de 9/10/96 e creditada a RTI.
