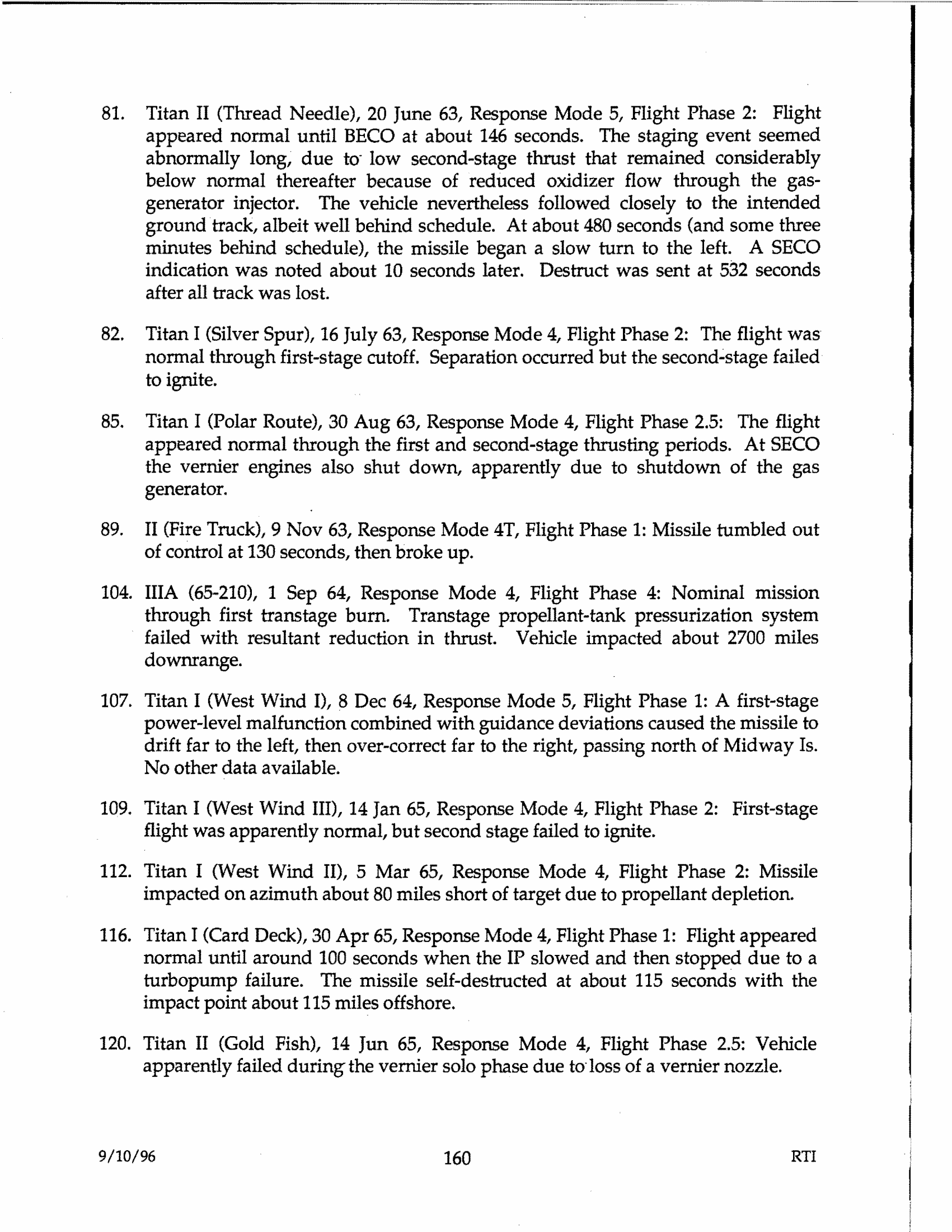

81.   Titan II (Thread Needle), 20 June 63, Response Mode 5, Flight Phase 2: Flight
      appeared normal until BECO at about 146 seconds. The staging event seemed
      abnormally long, due to· low second-stage thrust that remained considerably
      below normal thereafter because of reduced oxidizer flow through the gas-
      generator injector. The vehicle nevertheless followed closely to the intended
      ground track, albeit well behind schedule. At about 480 seconds (and some three
      minutes behind schedule), the missile began a slow turn to the left. A SECO
      indication was noted about 10 seconds later. Destruct was sent at 532 seconds
      after all track was lost.
82.   Titan I (Silver Spur), 16 July 63, Response Mode 4, Flight Phase 2: The flight was
      normal through first-stage cutoff. Separation occurred but the second~stage failed·
      to ignite.

85.   Titan I (Polar Route), 30 Aug 63, Response Mode 4, Flight Phase 2.5: The flight
      appeared normal through the first and second-stage thrusting periods. At SECO
      the vernier engines also shut down, apparently due to shutdown of the gas
      generator.
89.   II (Fire Truck), 9 Nov 63, Response Mode 4T, Flight Phase 1: Missile tumbled out
      of control at 130 seconds, then broke up.
104. IHA (65-210), 1 Sep 64, Response Mode 4, Flight Phase 4: Nominal mission
      through first transtage burn. Transtage propellant-tank pressurization system
    • failed with resultant reduction in thrust. Vehicle impacted about 2700 miles
      downrange.
107. Titan I (West Wind I), 8 Dec 64, Response Mode 5, Flight Phase 1: A first-stage
     power-level malfunction combined with guidance deviations caused the missile to
     drift far to the left, then over-correct far to the right, passing north of Midway Is.
     No other data available.
109. Titan I (West Wind III), 14 Jan 65, Response Mode 4, Flight Phase 2: First-stage
     flight was apparently normal, but second stage failed to ignite.
112. Titan I (West Wind II), 5 Mar 65, Response Mode 4, Flight Phase 2: Missile
     impacted on azimuth about 80 miles short of target due to propellant depletion.
116. Titan I (Card Deck), 30 Apr 65, Response Mode 4, Flight Phase 1: Flight appeared
     normal until around 100 seconds when the IP slowed and then stopped due to a
     turbopump failure. The missile self-destructed at about 115 seconds with the
     impact point about 115 miles offshore.
120. Titan II (Gold Fish), 14 Jun 65, Response Mode 4, Flight Phase 2.5: Vehicle
     apparently failed during the vernier solo phase due to·loss of a vernier nozzle.



9/10/96                                    160                                         RT!
