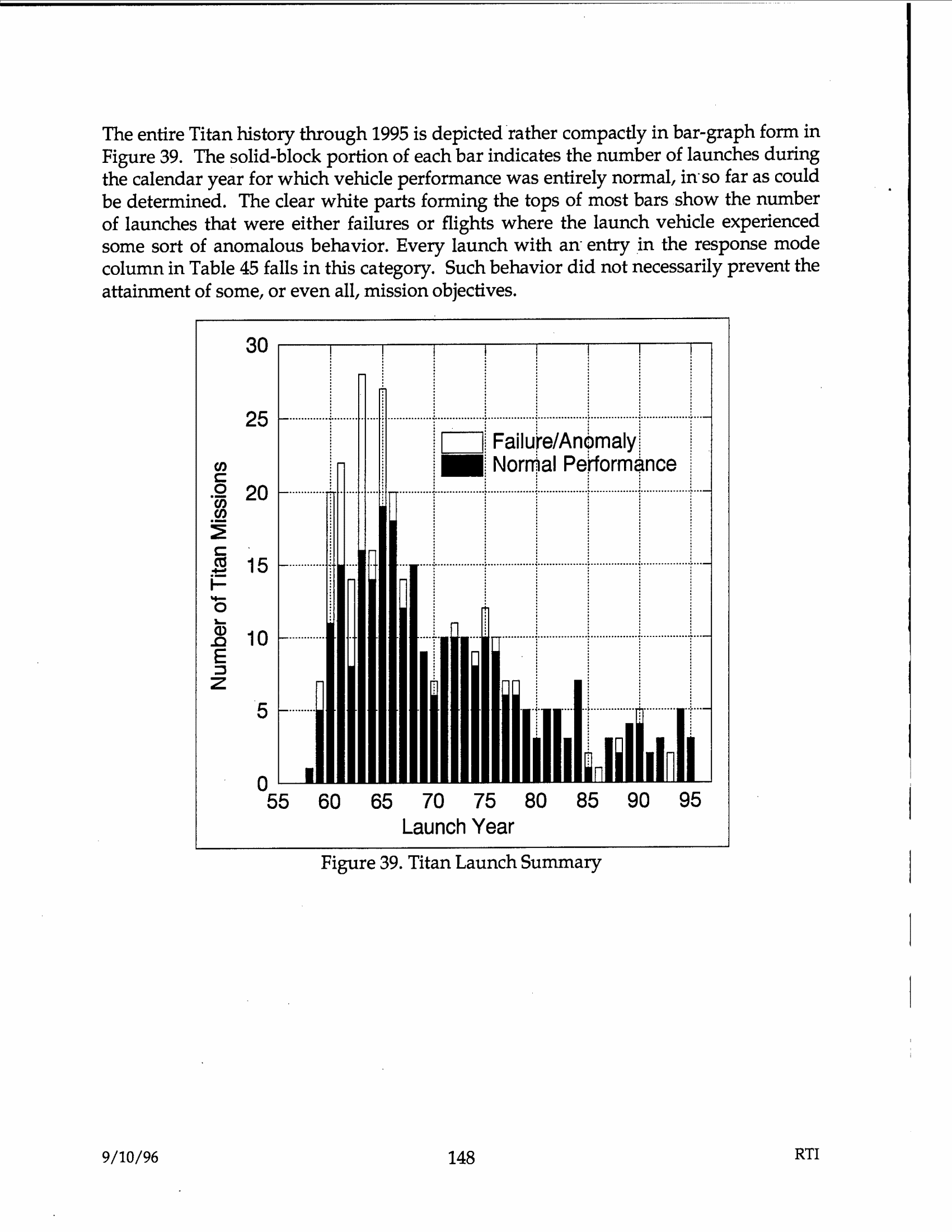

The entire Titan history through 1995 is depicted rather compactly in bar-graph form in Figure 39. The solid-block portion of each bar indicates the number of launches during the calendar year for which vehicle performance was entirely normal, in-so far as could be determined. The clear white parts forming the tops of most bars show the number of launches that were either failures or flights where the launch vehicle experienced some sort of anomalous behavior. Every launch with an- entry _in the response mode column in Table 45 falls in this category. Such behavior did not necessarily prevent the attainment of some, or even all, mission objectives. 30 ,-------,,-------,,-------,------,----,----,------.-----,---, ! I ~ 25 ! !□i Failu~e/An~maly! ! ~ 0 20 I 11111 Nor1a1 Perormfnee I ...................... ············································.··································.·················.··· ·_f l_ , l i l i l ~ ;,:. !: !: !: !: !: 5 15 ............ ii',,; i-_-0~ l ....·······;·............... i( ...............li................ i( ...............li... ... ····;····· i ! i i I i m 10 .c I ···· 1 ... I I I I ........... (................l................ f················1 ··· z§ !: : I: : I: : I: : I: : ·5 ......... ! i i j ·r --- ·-r··--········--- =........... ·-r··· l i l 0 L....-_ _ _ ____,..._.............___,.......... 55 60 65 70 75 80 85 90 95 Launch Year Figure 39. Titan Launch Summary 9/10/96 148 RTI
